Ultra-compact, managed, board-level Gigabit Ethernet switch

BRAND: Techaya

MODEL#: MILTECH 914

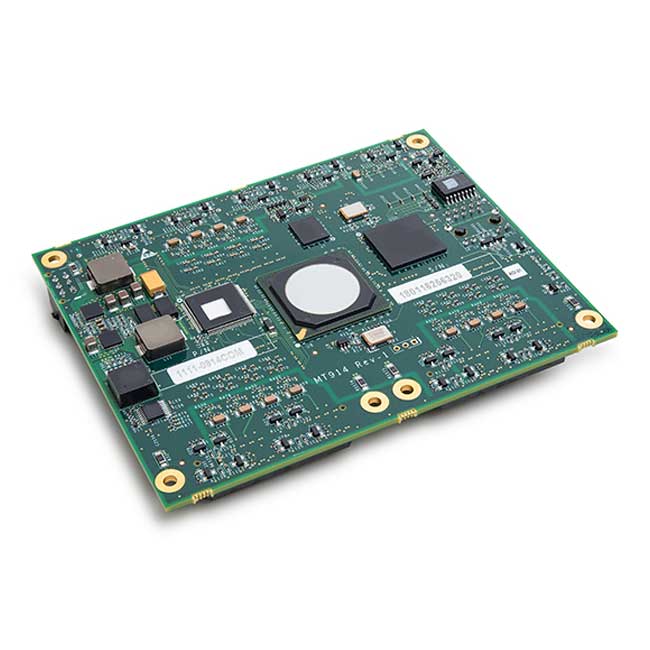

The MILTECH 914 is an ultra-compact MIL-STD, lightweight, fully managed, board-level Gigabit Ethernet switch featuring 14 x 10/100/1000Mbps ports.

Download Data Sheets Here

milpower-914–Data Sheet–Rev.-.pdf

DESCRIPTION

The MILTECH 914 is a cost-effective, ultra-compact Ethernet switch on board (ESOB) that is ideal for integrating in to system-level solutions for military and rugged applications. This 14 port (10/100/1000) managed switch includes advanced L2+ networking features such as include static routing, VLANS, traffic prioritization (QoS), bandwidth aggregation, and security at both port and board level.

At just 125mm (L) x 95(W) x 20(H), including connectors & hardware, the MILTECH 914 is the industry’s most dense Ethernet switch available. With a conformal coating, the MILTECH 914 stands up to extreme vibration and environmental elements while rated to work in temperatures from -45°C to +75°C. It complies to MILSTD-810F/G/GM when housed in an appropriate enclosure. With next-generation flat cable connectors that lock and screw down and 6-19VDC power, the MILTECH 914 easily mates with other board-level compute platforms and power systems.

Specifications

Product ModelMILTECH 914
ManagementManaged
Ports14 x 10/100/1000
IngressIP67
DIMS (L x W x H)125mm x 95mm x 20mm including connectors
ConnectorsLAN: Samtec + ERNI, Console: Molex, Power: Molex
Weight52 g
Operating Temp-45C to +85C
MIL-STDMIL-STD-466E, MIL-STD-810FGM ⃰
Power6-19DC, 14W (Typical)



APPLICATIONS

GROUND

UAV
