MilTech 9024 – Managed 1 Gb Switch/Router with 12 Copper Ports and 4 Fiber Ports

BRAND: Techaya

MODEL#: MILTECH 9024

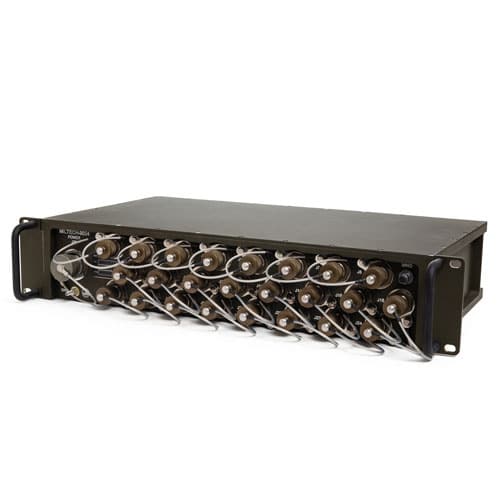

The MILTECH 9024 is a rugged 1 GE rack-mount router specifically designed for battlefield C4ISR, voice, video, and sensor data acquisition, and communications in military platforms that handle large quantities of real-time data. With 24 triple-speed (10/100/1000Mbps) ports through D38999 connectors, MILTECH 9024 is ideal for mobile platforms and shipboard systems that deal with high resolution video and other data-intensive signaling.

Download Data Sheets Here

milpower-9024–Data Sheet–Rev.-.pdf

DESCRIPTION

The MILTECH 9024 is a rugged 1 GE rack-mount router specifically designed for battlefield C4ISR, voice, video, and sensor data acquisition, and communications in military platforms that handle large quantities of real-time data. With 24 triple-speed (10/100/1000Mbps) ports through D38999 connectors, MILTECH 9024 is ideal for mobile platforms and shipboard systems that deal with high resolution video and other data-intensive signaling.

It features both L2/L3 network switching and routing capabilities, including virtual LANS (VLANS), traffic prioritization/QoS, IPv4/IPv6 dynamic routing, and bandwidth aggregation. It supports all the latest networking protocols for redundancy, security, multicast, and management.

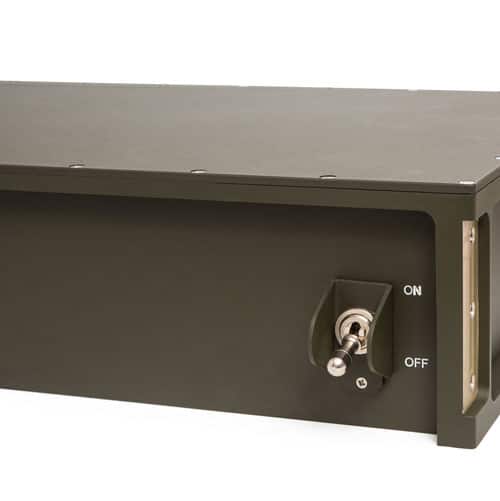

Its 1GE transmission speeds and 24VDC power make it instantly compatible with network devices and power systems. An optional redundant power connection adds to overall system survivability.

Specifications

Product ModelMILTECH 9024
ManagementManaged
Ports24 GbE Copper
IngressIP 67
DIMS (L x W x H)16.85” x 10.6” x 3.47”

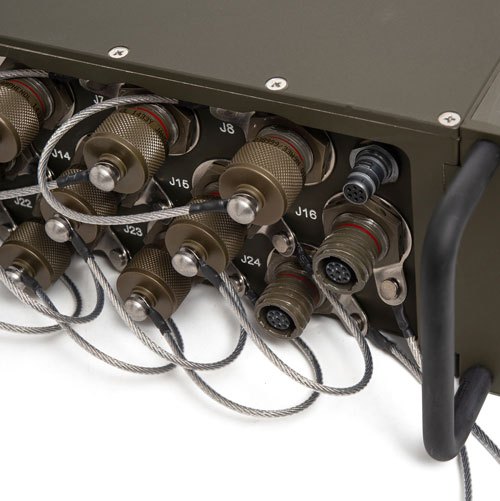

Connectors24 x LAN: TV07RW09-09S (D38999)
Weight5.5 Kg
Operating Temp-45C to +80C
MIL-STD

MIL-STD 1275B, MIL-STD 704A, MIL-STD 461E, MIL-STD 810F/G

Power

24Vdc Nominal (18-32Vdc) or 220VAC (90-230VAC)

APPLICATIONS

GROUND

MARINE
