MILTECH 718 – 8 port board-level, ruggedized Gigabit Ethernet switch with conformal coating and wide temperature and voltage range

BRAND: Techaya

MODEL#: MILTECH 718

The MILTECH 9116 is a cost-effective, easy to manage 10 Gb Ethernet solution for mobile military platforms. The MILTECH 9116 is fully managed military grade network switch offering 12 x 10G copper ports and up to 4 x 10G fiber ports using TacBeam connectors. It can be remotely managed to optimize communications and prioritize critical information traffic.

Download Data Sheets Here

milpower-718–Data Sheet–Rev.-.pdf

DESCRIPTION

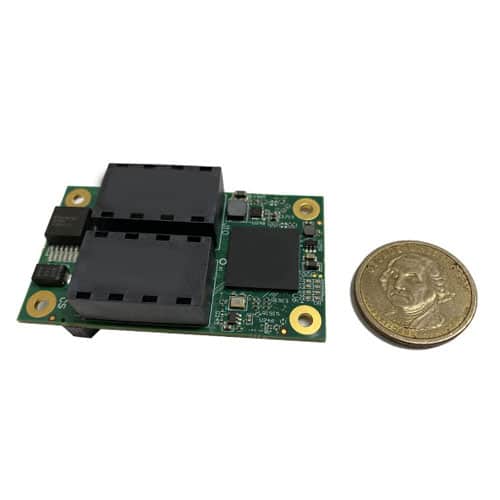

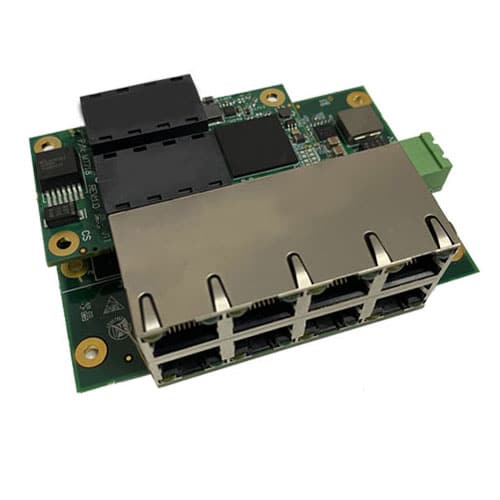

The MILTECH 718 is a Gigabit Ethernet switch on board (GESoB) with 9 Gigabit Ethernet ports. With a single board-on-board connector, it can easily provide LAN connectivity to any UAV or robotic platform. Gigabit Ethernet speeds support higher data rate payloads such as cameras, sensors or control traffic.

Conformally coated, the MILTECH 718 meets MIL-STD-461F, MIL-STD-810F/G and IP68 requirements when housed in appropriate enclosures. Consuming only 5 watts of power with a range of 9-32 Vdc, the MILTECH 718 is a flexible solution for differing power profiles. The compact design gives it a footprint of  2.7” x 1.5” x 1.1” and a weight of 1.6 ounces.

Specifications

Product ModelMILTECH VGA
ManagementManaged
Ports1 x USB2.0/3.0 uplink – 1 x VGA output – 1 x Serial interface RS232/422/485/LVTTL – 1 x 6V/8V power output
Ingress
DIMS (L x W x H)76.4mm (L) x 71.4(W) x 24.7(H)
ConnectorsJ1: GK0WAM-P12UM00-000L (USB uplink) – J2: GK1WBM-P27UB00-000L (VGA, Serial, Power)
Weight135g
Operating Temp-45C to +85C
MIL-STD

MIL-STD-461G, MIL-STD-810G, IP68

Power
Power input: 5Vdc +/- 5%, 0.5A min
Power output: 6Vdc/8Vdc @2A
Power Consumption: 2.5W Max



APPLICATIONS

SOLDIER-CARRY

UAV
