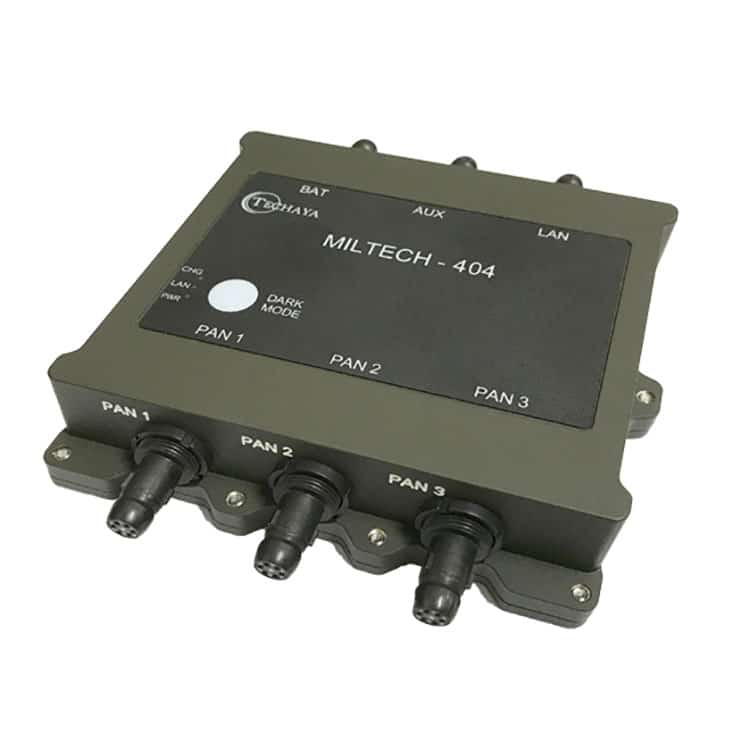

MILTECH 404 – Open Architecture, Integrated Data and Power Management

BRAND: Techaya

MODEL#: MILTECH 404

The MILTECH 404 is a Linux-based integrated power and data management system for soldier-carry applications (Integrated Soldier Power and Data System- ISPDS)

Download Data Sheets Here

milpower-404–Data Sheet–Rev.-.pdf

DESCRIPTION

By combining Ethernet, USB, serial,  SMBUS and open Linux architecture, the MILTECH 404 provides communication between multiple soldier-carry devices while managing and supplying power to the devices.

The MILTECH 404 comes equipped with 1X 10/100 fast Ethernet port, 3X USB 2.0 ports, 1X serial (RS232) port, and 1 external power source input. A powerful system on board (SOM) running Linux provides power management and is available for other tactical applications. All ports provide both Vbat and 5Vdc according to Nett Warrior pin out.

MIL-STD 810F and IP 68 rated, the MILTECH 404 measures just 4.6” x 4.85” x .98” and weighs just .66 lbs. It’s a compact, lightweight and adaptable solution ideally suited for the modern battlefield.

Specifications

Product ModelMILTECH 404
ManagementUnmanaged
Ports

Communications Hub with on-board Linux Processor + Power:

  • 1 x 10/100 (Fast Ethernet) port
  • 3 x USB 2.0 ports
  • 1 x Serial, RS-232
  • 1 x External power source input (including SMBUS
    V.2.0),internal charger
  • All ports provide both Vbat and 5Vdc according to net-warrior
    pin out
DIMS117mm (L) x 123.2mm(W) x 25mm(H), including connectors
ConnectorsPower and communication connectors according to netwarrior,
6 PIN arrangement.
Weight300 grams
Operating Temp-45°C to +85°C
MIL-STDMIL-STD-461E, MIL-STD-810F, MIL-STD-1275, IP68
PowerPower Input:
– 2 x Battery: 8-18Vdc (compatible with 3 and 4 cells smart batteries, including SMBUS per battery).
– External Power: 18-28Vdc for battery charging and full system operation,
• Power Output:
– 5 x 5VDC, per port
– Vbat (8-18Vdc), 3A per port
• Total System Current Limitation: Vbat, 5A can be adjustable up to 8A.
• Total System Current Limitation for 5VDC Rail: 5VDC, 5A
• Total System Power Consumption: 15W

APPLICATIONS

SOLDIER-CARRY
