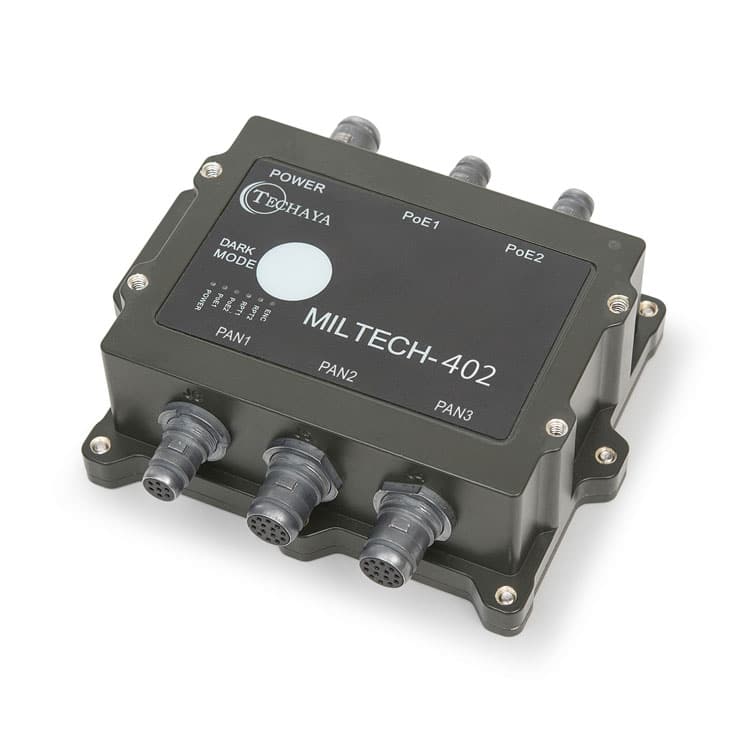

MILTECH 402 – Compact 5 port Fast Ethernet Switch with POE and External Power

BRAND: Techaya

MODEL#: MILTECH 402

The MILTECH 402 is a rugged, military-grade Fast Ethernet switch with PoE and 5VDC power distribution available over the Ethernet ports. Combining LAN and power distribution and weighing less than 10 ounces, it drastically lightens the load and reduces cabling complexity in soldier carry applications.

Download Data Sheets Here

milpower-402–Data Sheet–Rev.-.pdf

DESCRIPTION

Once connected to a military-grade 10-16.8VDC smart battery supply (4 cell Li-ION), it uses dynamic power allocation to provision 2 LAN channels with PoE (15.4 watt each), 2 LAN channels with 16.8 Vdc/5A (Vbat) and1 LAN channel with 5V/1.5A up to a maximum power budget of 35W. The MILTECH 402 is IEEE 802.3 compliant.

Networking features include full wire-speed forwarding rate (26.8 Mpps), store-and-forward, Auto MDX-II/MDI-X, auto negotiation, and address look-up.

The MILTECH 402 weighs less than 10 ounces including connectors and hardware and measures 3.93” x 3.7” x 1.34”. It meets MIL-STD 810F/G/GM, and MIL-STD 461 specifications.

Specifications

Product ModelMILTECH 402
ManagementUnmanaged
Ports

Total of 5 Ethernet 10/100 (Fast Ethernet) ports + Power:

  • 2 x PoE, 10/100 (Fast Ethernet) ports
  • 1 x 10/100 (Fast Ethernet) port + 5V/1.5A Power Supply
  • 2 x 10/100 (Fast Ethernet) port + 10V -16.8V/5A (Vbat)
  • Power Supply
DIMS100mm X 94.2mm X 34.1mm including connectors
ConnectorsPower Connector: SCE2-B-76A -10ASN
LAN/PoE Connectors: SCE2-B-76A06-07SN
PAN1 Connector: SCE2-B-76A06-07SN
PAN2,3 Connectors: SCE2-B-76A-14SN
Weight280 grams
Operating Temp-40°C to +85°C
MIL-STDMIL-STD-810F/G/M, MIL-STD-461E
PowerVoltage Input: 10VDC – 16.8VDC Battery Supply
Power Consumption: 140W maximum
Chassis grounding
  • Over Current Protection 1.5A & 5A.
  • Overload, Over-Voltage & Short Circuit Protection for PoE Ports.
  • Reverse Polarity Protection
Power (POE)
  • Total PoE Budget 35W
  • Maximum Consumption per port 15.4W
  • Dynamic Power Allocation
  • PoE Priority per port
  • Full Comply to IEEE 802.3af
  • No Power Degradation at +85°C

Operates from Regular Military 10-16.8VDC Smart Battery Supply (4 cell Li-ion)

APPLICATIONS

SOLDIER-CARRY

UAV
