Fast Ethernet unmanaged ESoB (Ethernet switch on board) – 8 Port

BRAND: Techaya

MODEL#: MILTECH 309

Techaya MILTECH 309 is an 8 port board level, military grade, Fast Ethernet switch with conformal coating, wide temperature range and smallest footprint

Download Data Sheets Here

milpower-309–Data Sheet–Rev.-.pdf

DESCRIPTION

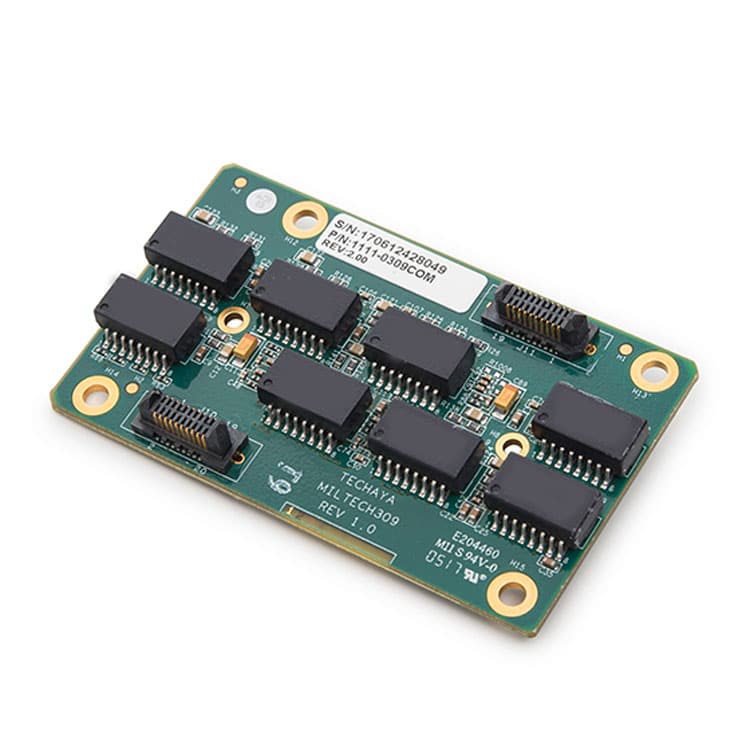

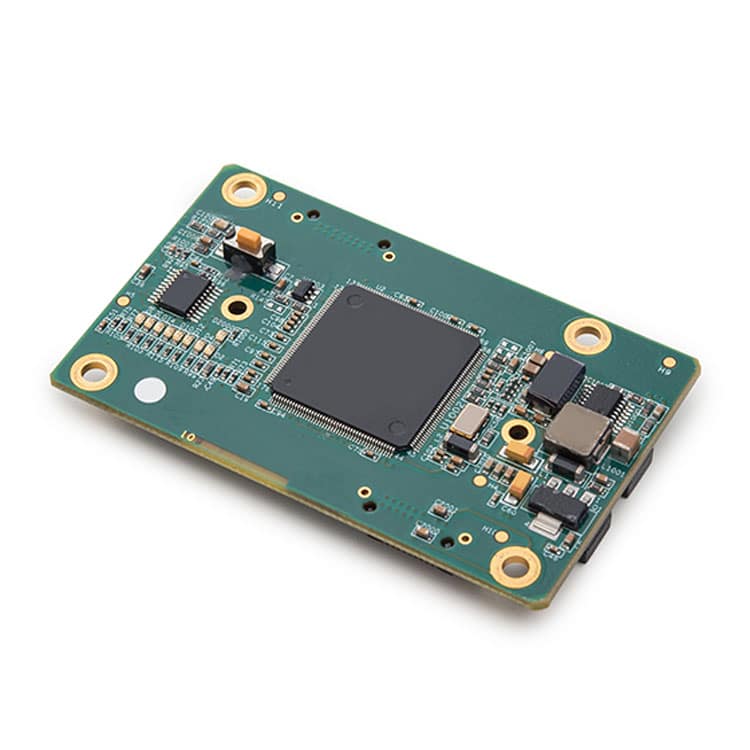

The MILTECH 309 Fast Ethernet switch on board (ESoB) is a complete system-level board with eight 10/100Mbps ports. With board-to-board connectors, it serve as a robust solution for providing local area network (LAN) connectivity to IP-enabled computing and netcentric systems. Developed to be embedded in the smallest, harshest environments, the MILTECH 309 is less than 1.7” x 3” x .5” and features a wide temperature range and conformal coating.

With the best combination of size, weight, power and cost (SWaP-C) the MILTECH 309 operates on readily available 5VDC power and may easily be powered from computers and other devices with USB ports.

Specifications

Product ModelMILTECH 309
ManagementUnmanaged
Ports8 x 10/100
IngressN/A
DIMS (L x W x H)43.18 mm x 71 mm x 11.4 mm
ConnectorsPower + LAN : Samtec Board-to-Board
Weight40 g
Operating Temp-45C to +85C
MIL-STDN/A
Power5VDC, 2W (Typical)

APPLICATIONS

UAV
