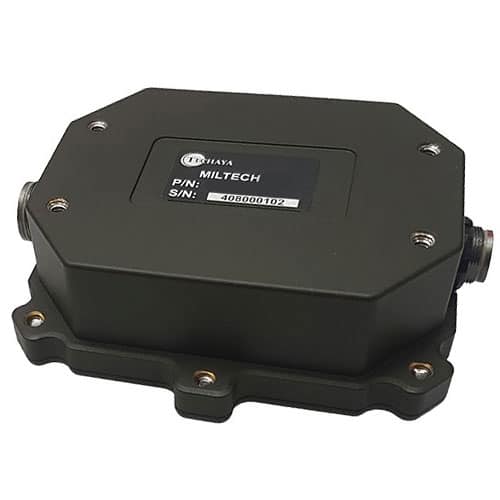

MILTECH VGA – Military Rugged USB3 to VGA & Serial Converter

BRAND: Techaya

MODEL#: MILTECH VGA

The MILTECH VGA enables the conversion and connection of a USB 2/3 device port to deliver video via a VGA and Serial port in rugged, military environments. As a multi-monitor solution, it enables extending workspaces and monitor mirroring for navigation systems, cameras, smart suites and more.

Download Data Sheets Here

milpower-VGA–Data Sheet–Rev.-.pdf

DESCRIPTION

The MILTECH VGA enables the conversion and connection of a USB 2/3 device port to deliver video via a VGA and Serial port in rugged, military environments. As a multi-monitor solution, it enables extending workspaces and monitor mirroring for navigation systems, cameras, smart suites and more.

Designed from the ground up to for rugged tactical environments, it provides 6V/8V power output to eliminate the need for on-vehicle power adapters. Meeting MIL STD 810, 461 and IP 68 ratings, it can stand up to the most rigorous environments while still delivering high-quality video feeds as needed. With a compact size of 3’ x 2.6” x .97” and a weight of .29, it fits easily into any platform with space or weight requirements.

Specifications

Product Model MILTECH VGA
Management Managed
Ports 1 x USB2.0/3.0 uplink – 1 x VGA output – 1 x Serial interface RS232/422/485/LVTTL – 1 x 6V/8V power output
Ingress
DIMS (L x W x H) 76.4mm (L) x 71.4(W) x 24.7(H)
Connectors J1: GK0WAM-P12UM00-000L (USB uplink) – J2: GK1WBM-P27UB00-000L (VGA, Serial, Power)
Weight 135g
Operating Temp -45C to +85C
MIL-STD
MIL-STD-461G, MIL-STD-810G, IP68
Power
Power input: 5Vdc +/- 5%, 0.5A min Power output: 6Vdc/8Vdc @2A Power Consumption: 2.5W Max

APPLICATIONS

SOLDIER-CARRY

UAV
